intersciencefire

Markets

Marine

intersciencefire offers testing in accordance with the IMO FTP Code — the International Code for Application of Fire Test Procedures — covering non-combustibility, smoke and toxicity, surface flammability, textiles and films, upholstered furniture, bedding components and fire-restricting materials for high-speed craft.

Fire tests for marine

6 matching test methods. Each card opens the full test method page.

EN ISO 11925-2

Ignitability — Single Flame Source Test

Determines the ignitability of building products in the vertical orientation when subjected to impingement of a standard small flame.

Measures:
Ignitability · Flame spread (Fs) · Flaming droplets/particles
Markets:
Construction Products · Railway · Marine
Related classification:
EN 13501-1 · EN 45545-2 · IMO FTP Code
View test method

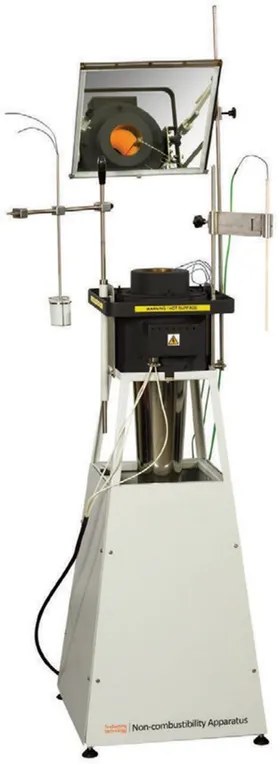

EN ISO 1182

Non-Combustibility Test

Determines the non-combustibility performance of homogeneous products and substantial components of non-homogeneous building products.

Measures:
Temperature rise (ΔT) · Mass loss (Δm) · Sustained flaming (tf)
Markets:
Construction Products · Marine
Related classification:
EN 13501-1 · IMO FTP Code
View test method

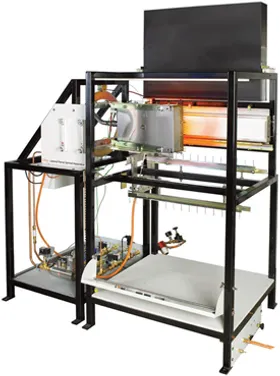

ISO 5658-2

Lateral Spread of Flame Test

Measures the lateral spread of flame along the surface of a vertically orientated specimen subject to radiated heat in the presence of a pilot flame.

Measures:
Lateral flame spread · Critical heat flux at extinguishment
Markets:
Railway · Marine
Related classification:
EN 45545-2 · IMO FTP Code
View test method

ISO 5660-1 · ASTM E1354

Cone Calorimeter

The most significant bench-scale instrument in fire testing — measures heat release, smoke production and mass loss under preset fire conditions.

Measures:
Heat release rate · Time to ignition · Mass loss rate · Smoke production rate
Markets:
Railway · Marine · Plastics
Related classification:
EN 45545-2
View test method

BS EN ISO 5659-2 · ASTM E662

Smoke Density Chamber

Determines the specific optical density of smoke generated by solid materials and assemblies in a closed chamber.

Measures:
Specific optical density of smoke
Markets:
Railway · Plastics · Marine · Aviation
Related classification:
EN 45545-2 · IMO FTP Code
View test method

ISO 19702 · EN 17084

FTIR Toxic Gas Analysis — FTIR

Fourier-transform infrared analysis of toxic fire effluents — the method chosen by ISO, EN and IMO committees for measuring toxic species.

Measures:
CO · CO₂ · HCN · SO₂
Markets:
Railway · Marine
Related classification:
EN 45545-2 · IMO FTP Code
View test method

Need help choosing the right marine test?

Tell us what you make and where it will be used. We will come back with the exact tests and the classification route to plan for.
