EN 60332-1-2

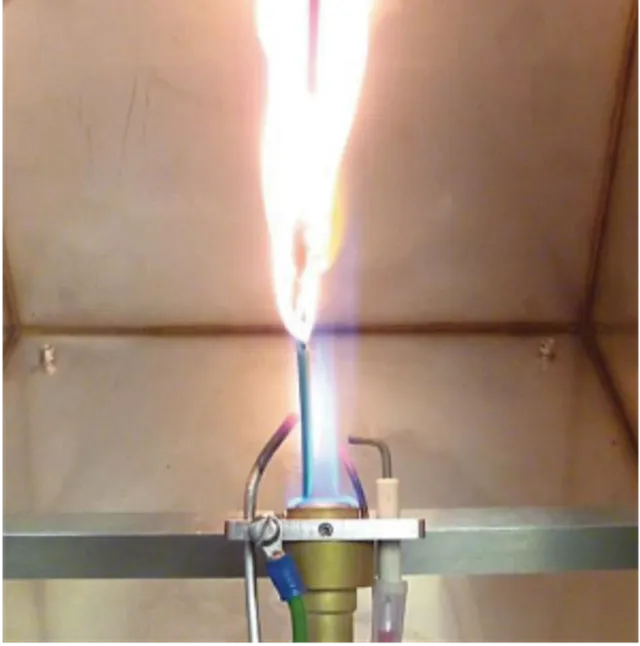

Evaluates the flame spread of a single vertical insulated conductor, cable or optical fibre cable exposed to a 1 kW pre-mixed flame.
Tests on electric and optical fibre cables under fire conditions — Part 1-2: Test for vertical flame propagation for a single insulated wire or cable — Procedure for 1 kW pre-mixed flame
This part of EN 60332 specifies the procedure for testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fibre cable, under fire conditions.
EN 60332-1-2 specifies the use of a 1 kW pre-mixed flame, and the test evaluates the flame spread of a cable under exposure to a small flame. The test is relevant for the classes B1ca, B2ca, Cca, Dca and Eca.
Sample dimensions, quantities, mounting, substrate and conditioning requirements for this test are confirmed with you before testing begins. Contact our technical team for the sample requirements for your product.
EN 50399
Evaluates the potential contribution of a cable to the early stages of a fire under direct exposure to a 20.5 kW or 30 kW flame source.
EN IEC 60332-3-10 · EN IEC 60332-3-24
Assesses vertical flame spread of vertically mounted bunched wires or cables, electrical or optical, under defined conditions.
EN 61034-2
Measures smoke emission when electric cables are burned under defined conditions in the 3 Metre Cube.
Send us a datasheet or a short description of your product and we will tell you exactly which tests apply, before any testing is booked.
